Description

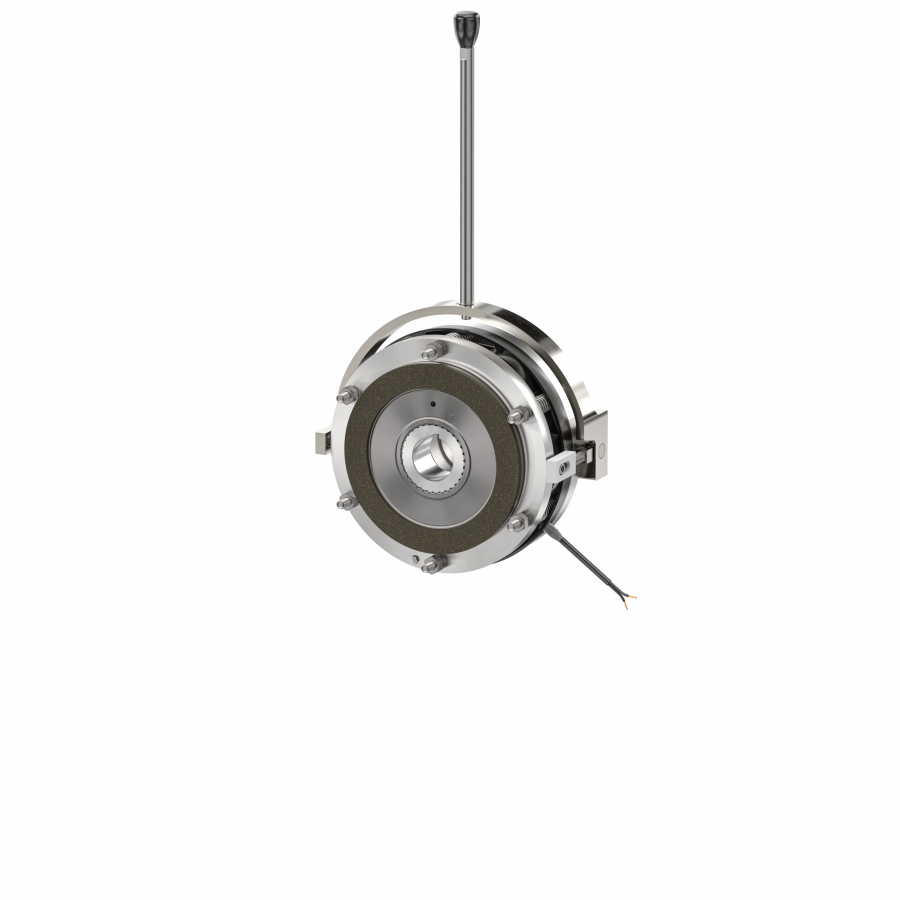

About BFK468 spring-applied brake
- 4 sizes
- Standard voltages 205/103 V, 360/180 V (release voltage/holding voltage)
- Torque ranges from 100 to 2,400 Nm
Versatile
- Modular structure for virtually all applications
- Connection compatible with the BFK458 range of brakes
Torque transmission
- Can be frictionally engaged during dry running
- Special machining of the friction surfaces ensures that the characteristic torques are already achieved after just a few switching operations
- Fixed bearing is not required on the brake
Durable
- The insulation system in line with temperature class F (155°C) ensures that the winding has a long service life
- The brakes are designed for 100 % duty time (with holding current reduction) with an INTORQ half-wave bridge rectifier
Quick and easy mounting
- Preset air gap
Low maintenance
- Long rotor/hub connection with low rate of wear and triedand-tested involute gear
- Low-wear, asbestos-free friction lining comes as standard
Reliable
- The certified ISO 9001 and ISO 14001 quality assurance system provides the basis for consistently high-quality products
- Production and testing in accordance with VDE 0580
Options
- Manual release for sizes 18–25, release on both sides
- Noise-reduced designs
- Various types of corrosion protection and enclosures
- Air gap or wear monitoring via mircoswitch
