Description

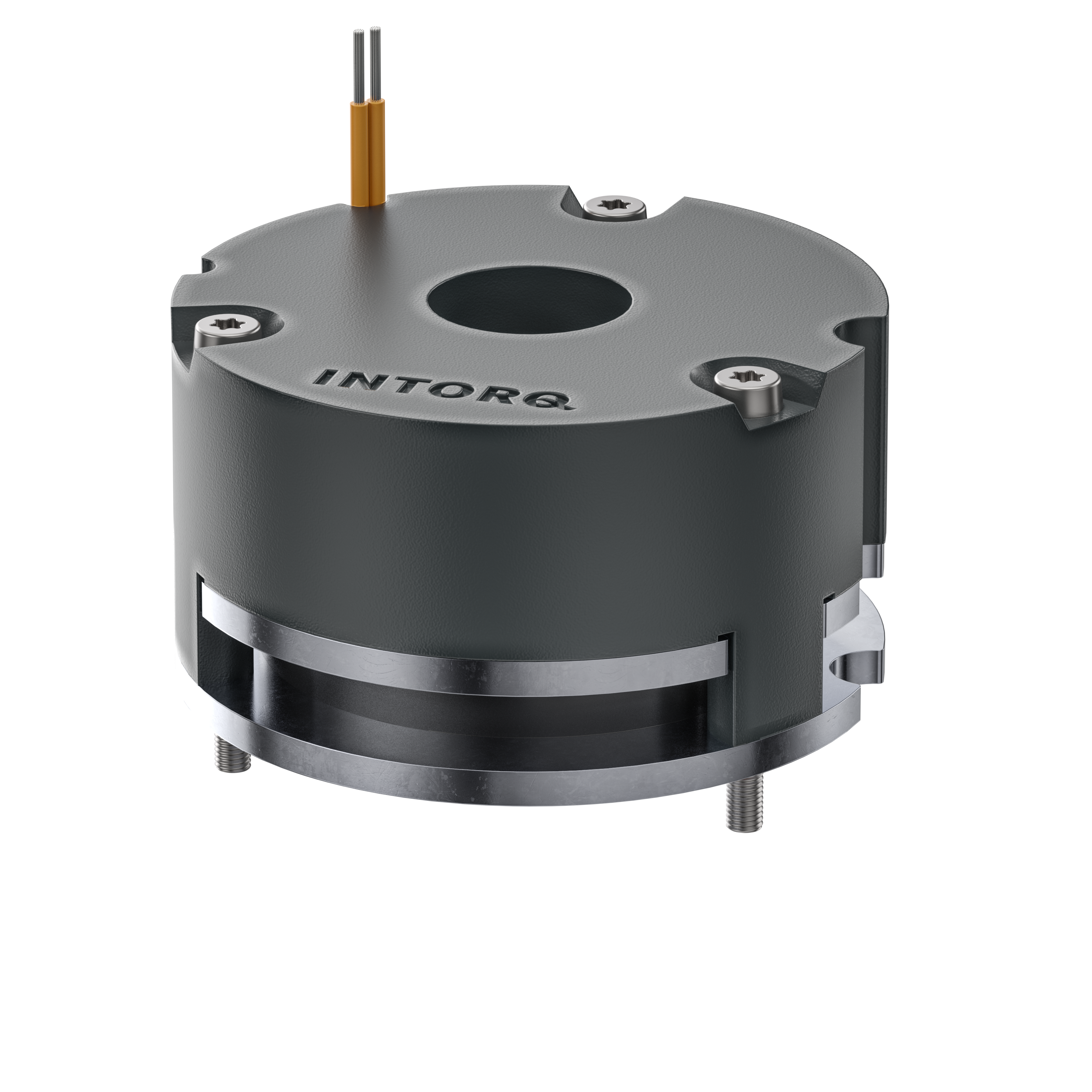

About BFK551 spring-applied brake
- Dynamic or holding brake with emergency stop function
- Compact design with rotor and flange
- Fully assembled with integrated Torx® mounting screws
- 5 different brake sizes
- Brake torques between 0.24 and 4 Nm
- Supply voltage:
- Size 01 brakes: 24 VDC
- Size 02 brakes: 24 VDC / 205 VDC
- Size 03/04/05 brakes: 24 VDC / 103 VDC / 205 VDC
- Insulation class F (155°C)
- Ambient temperatures - 20 to +40°C
- Simple brake installation on motor shaft
- Factory-set air gap – secured against accidental adjustments
- Involute splines for long hub life
- Different hub bore diameters for each brake size
- Hand release for size 03/04/05 brakes available from Q4/2021
- Optional customized modifications and solutions
- Global availability
