Description

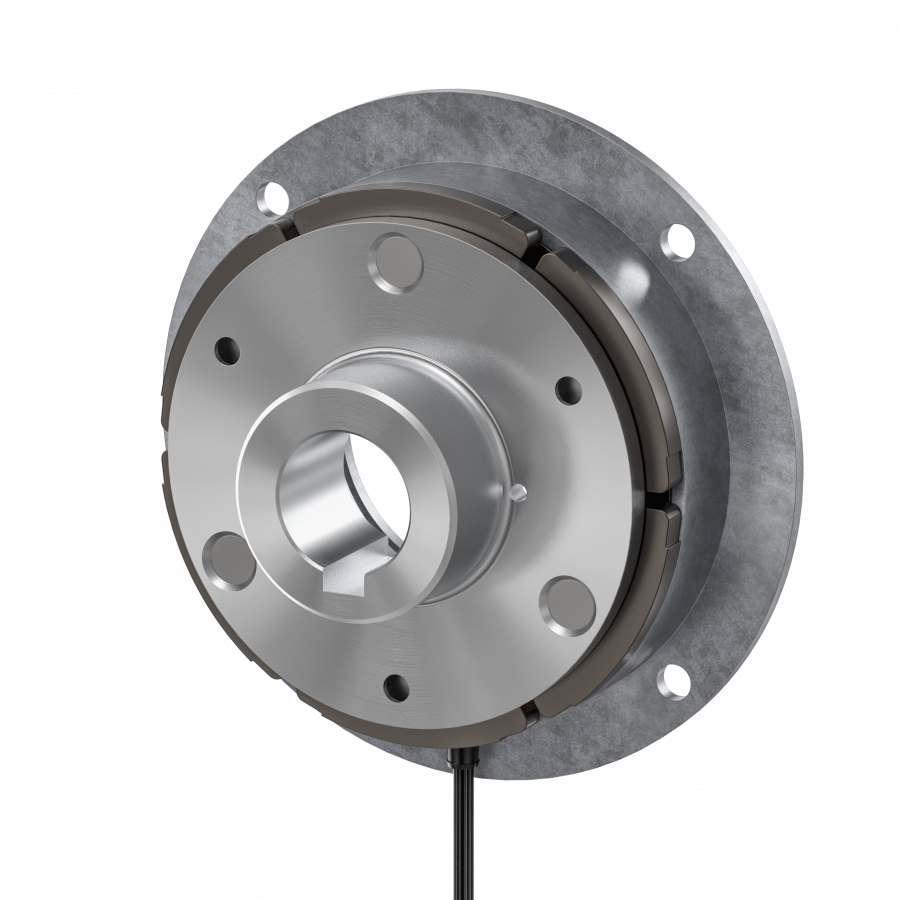

About Electromagnetic clutches and brakes
Electromagnetic clutches and brakes are used wherever rapid acceleration or deceleration of masses in motion is required.
This document describes powerful and reliable mass-produced products which have already been tried and tested in numerous applications.
A complete range
- 7 sizes
- Clutch/braking torques from 7.5 – 480 Nm
Versatile
- Suitable for any mounting position
- Clutches can be supplied as flange-mounted or shaft-mounted versions
- Various armature assembly types for clutches and brakes can be supplied to suit any application case
Torque transmission
- Friction transmission in dry running
- Immediately ready for operation
- Special machining of the friction surfaces ensures that the rated torques are achieved after very few switching operations without a run-in period, even when the product is new.
Reliable
- The certified ISO 9001 and ISO 14001 quality system provides the basis for consistently highquality products
- Manufacture and testing to VDE 0580
Low maintenance
- Working air gap only has to be checked in relation to the friction energy used
- Wear adjustment only required at 2.5 times the rated air gap
- Asbestos-free friction linings with a low rate of wear and nitride hardened armature plates ensure a long service life and constant torques
Release without detent torque
- The prestressed annular spring on the armature assembly ensures release without residual torque on de-energisation
Short and consistent operating times
- The prestressed, backlash-free annular spring on the armature assembly enables short and constant operating times to be achieved, even with larger working air gaps
Options
- Special voltages and bores are available on request
